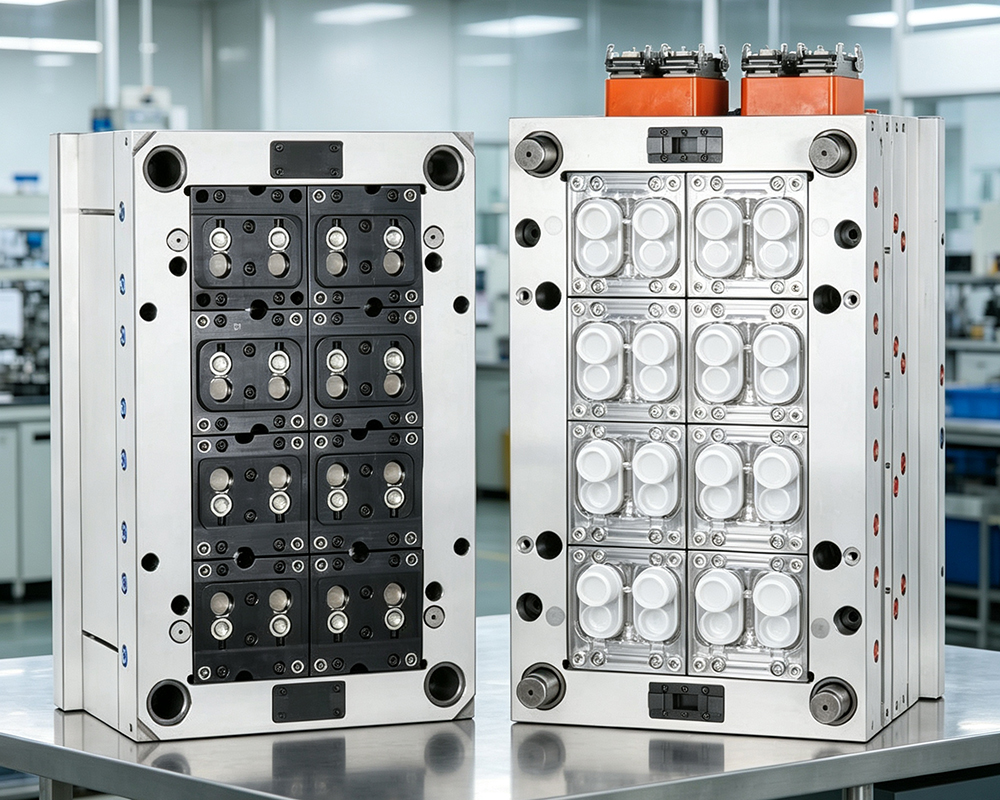

Shuanghao Mould is a professional manufacturer of 16 Cavity Edible Oil Flip Top Cap Moulds in China. High-precision flip cap moulds for cooking oil and food packaging industries featuring hot runner te...
Request a QuoteShuanghao Mould is a professional manufacturer of 16 Cavity Edible Oil Flip Top Cap Moulds, providing advanced injection mould solutions for edible oil packaging manufacturers worldwide. This mould is specially designed for producing flip-top caps used on cooking oil, vegetable oil, soybean oil, sunflower oil, corn oil, and other food-grade liquid containers.
The flip-top cap design offers convenient one-hand operation, controlled pouring, excellent sealing performance, and enhanced user experience. With the growing demand for premium edible oil packaging, flip-top caps have become a popular choice among cooking oil brands due to their practicality and attractive appearance.
Manufactured with premium mould steel, high-precision CNC machining, and advanced hot runner technology, our 16-cavity mould ensures stable production, high output, long service life, and excellent cap consistency.
The mould incorporates an advanced cooling design that helps:
| Item | Specification |
|---|---|
| Product Name | 16 Cavity Edible Oil Flip Top Cap Mould |
| Brand | Shuanghao Mould |
| Mold Type | Plastic Injection Mould |
| Cap Type | Flip Top Cap |
| Application | Edible Oil Bottles |
| Cavities | 16 Cavities |
| Runner System | Hot Runner |
| Mold Steel | S136 / H13 / 718H |
| Mold Base | LKM Standard |
| Surface Finish | Mirror Polish |
| Gate Type | Valve Gate |
| Mold Life | 5-10 Million Shots |
| Cycle Time | 8-12 Seconds |
| Design Software | UG / CAD / SolidWorks |
| Customization | Available |
This mould is widely used for producing:
Moldflow‑driven geometry prevents stress whitening and cracking, achieving 50k+ cycles.
3D‑printed inserts near the hinge reduce warpage and cut cycle time by 15%.
CMM inspection ensures cavity‑to‑cavity consistency within ±0.01 mm.
Interchangeable orifice inserts allow quick changes between different dispensing patterns.
Integrated seal geometry prevents leakage even after thousands of uses.
Quick‑change inserts and guided ejection reduce downtime and maintenance cost.
Share your cap drawing or sample and receive a detailed proposal within 24 hours.
