Bottle Cap Production Line: Complete Manufacturing Solutions from a Single Source
SHUANGHAO Machinery: Professional Manufacturer of Bottle Cap Machines
SHUANGHAO Machinery is a leading manufacturer and supplier of high-precision bottle cap machines for the global packaging industry. Specializing exclusively in the design and production of advanced bottle cap tooling and production equipment, we provide comprehensive, customized solutions for manufacturers worldwide. With years of technical expertise and a strong commitment to research and development, we offer state-of-the-art machinery that enables customers to produce high-quality plastic caps efficiently and cost-effectively.
Bottle Cap Production Line: Complete Manufacturing Solutions from a Single Source
As a specialized manufacturer of bottle cap machines, SHUANGHAO Machinery offers complete production line solutions designed for high-efficiency closure manufacturing. Our integrated systems combine advanced injection molding technology, automated handling, and quality control to deliver consistent output of premium bottle caps. From equipment supply to installation and commissioning, we provide end-to-end support for beverage, food, pharmaceutical, and personal care packaging manufacturers.
Production Line Configuration
Our bottle cap production line integrates the following key equipment:
| Stage | Equipment | Function |
|---|---|---|
| 1 | High-Speed Injection Molding Machine | Cap formation and ejection |
| 2 | Automatic Conveyor System | Cap transport between stations |
| 3 | Vision Inspection System | Online quality control |
| 4 | Automatic Packaging Unit | Bagging, boxing, or bulk packing |
Stage 1: High-Speed Injection Molding Machine
| Parameter | Specification |
|---|---|
| Clamping Force | 120-500 tons (selectable) |
| Cavity Count | 16, 24, 32, 48, 64, 96, 128 cavities |
| Cycle Time | 2.5-8 seconds (cap dependent) |
| Injection Pressure | 150-250 MPa |
| Screw Diameter | 45-85 mm |
| Screw L/D Ratio | 22:1-25:1 |
| Control System | PLC with HMI touchscreen |
| Drive System | Servo-hydraulic / All-electric |
| Energy Savings | 30-60% vs conventional hydraulic |
| Mold Change Time | 15-30 minutes |
Stage 2: Automatic Conveyor System
| Parameter | Specification |
|---|---|
| Conveyor Type | Belt conveyor / Air conveyor |
| Speed Range | 5-30 m/min adjustable |
| Material | Food-grade stainless steel / Aluminum |
| Integration | Direct molding machine connection |
| Orientation | Cap upright or random positioning |
Stage 3: Vision Inspection System
| Parameter | Specification |
|---|---|
| Inspection Speed | Up to 200,000 caps/hour |
| Detection Capabilities | Short shots, flash, thread defects, contamination, color variation |
| Camera Coverage | 360° multi-angle inspection |
| Rejection Mechanism | Automated pneumatic ejection |
| Data Output | Real-time production statistics and defect tracking |
Stage 4: Automatic Packaging Unit
| Parameter | Specification |
|---|---|
| Packaging Speed | Up to 200,000 caps/hour |
| Packaging Options | Poly bagging, carton filling, bulk bin |
| Weighing Accuracy | ±0.5g |
| Sealing Method | Heat seal, tape closure |
Production Line Specifications
| Parameter | Value |
|---|---|
| Total Line Length | 10-25 meters (configurable) |
| Daily Production Capacity | 50,000-500,000 caps |
| Cap Size Range | 18mm-63mm diameter |
| Material Compatibility | HDPE, PP, LDPE, recycled materials |
| Power Supply | 380V/50Hz/3Phase (customizable) |
| Air Pressure Requirement | 6-8 kg/cm² |
| Operator Requirement | 1-2 per shift |
| Installation Time | 15-30 days |

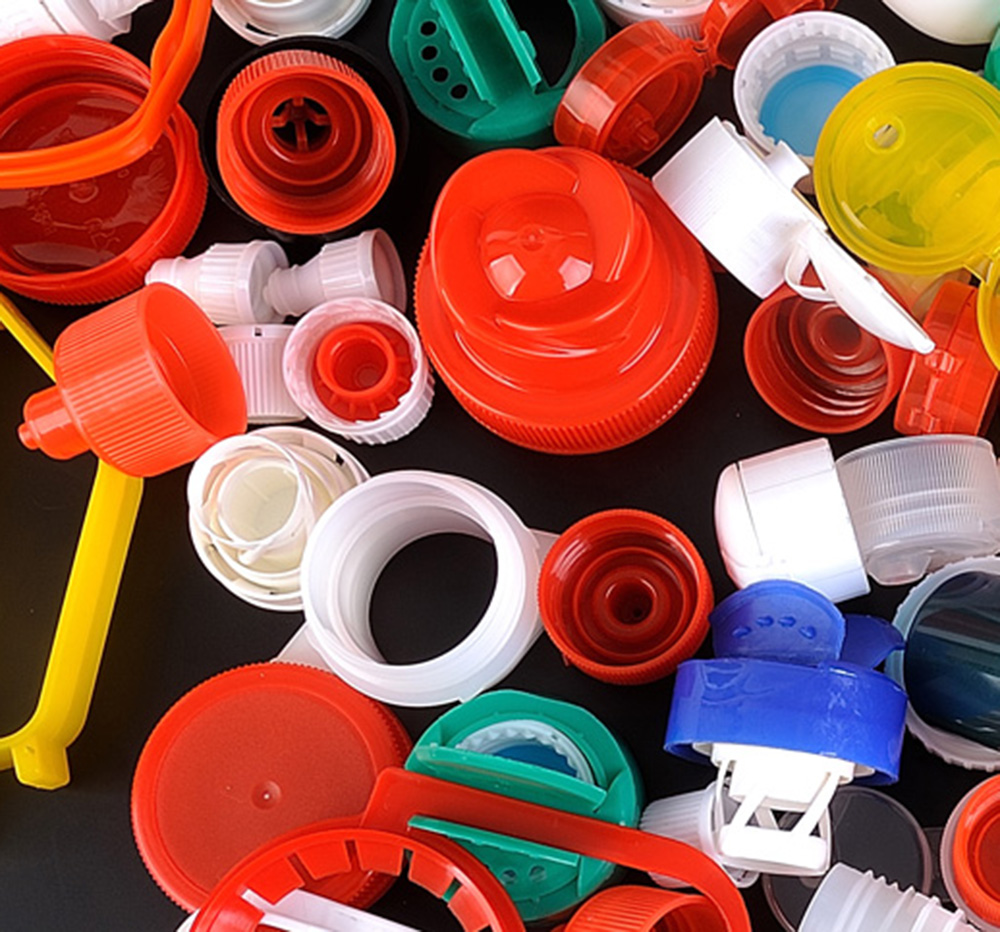

Applications
Beverage Caps: Water, carbonated soft drinks, juices, sports drinks
Food Caps: Edible oils, sauces, condiments, ketchup
Pharmaceutical Caps: Child-resistant, tamper-evident, medical closures
Personal Care Caps: Lotion pumps, shampoo caps, flip-top closures
Industrial Caps: Lubricant, chemical, and detergent closures
Quality Assurance
Pre-installation testing for all equipment
On-site commissioning with customer approval
Operator training provided
Comprehensive documentation including manuals and maintenance guides
12-month warranty on all equipment
Why Choose SHUANGHAO?
Specialized manufacturer: Dedicated to bottle cap machines
Integrated solutions: Complete line from molding to packaging
High efficiency: Up to 500,000 caps daily output
Energy efficient: Servo-hydraulic and all-electric options
Quality assurance: Vision inspection with AI defect detection
Customizable: Tailored configurations for your production needs
Global support: Installation, training, and after-sales service
Partner with SHUANGHAO for Complete Cap Production Solutions
SHUANGHAO Machinery's Bottle Cap Production Line represents the ideal solution for manufacturers seeking integrated, high-efficiency closure manufacturing. Contact us today to discuss your requirements.
