The Complete Guide to Multi-Cavity Cap Mould Design: From 2 to 48 Cavities
The Complete Guide to Multi-Cavity Cap Mould Design: From 2 to 48 Cavities
In the high-volume packaging industry, efficiency, cycle time, and absolute consistency are the pillars of profitability. For plastic bottle cap production, achieving these pillars relies entirely on high-performance injection tooling. As a leading specialist in the field, Shuanghao Mould delivers turnkey solutions that transition seamlessly from low-volume pilot production to massive, high-cavitation industrial outputs.
This comprehensive technical guide explores the critical engineering principles behind designing and manufacturing multi-cavity cap moulds—spanning from 2 to 48 cavities—and how precision engineering directly impacts your bottom line.

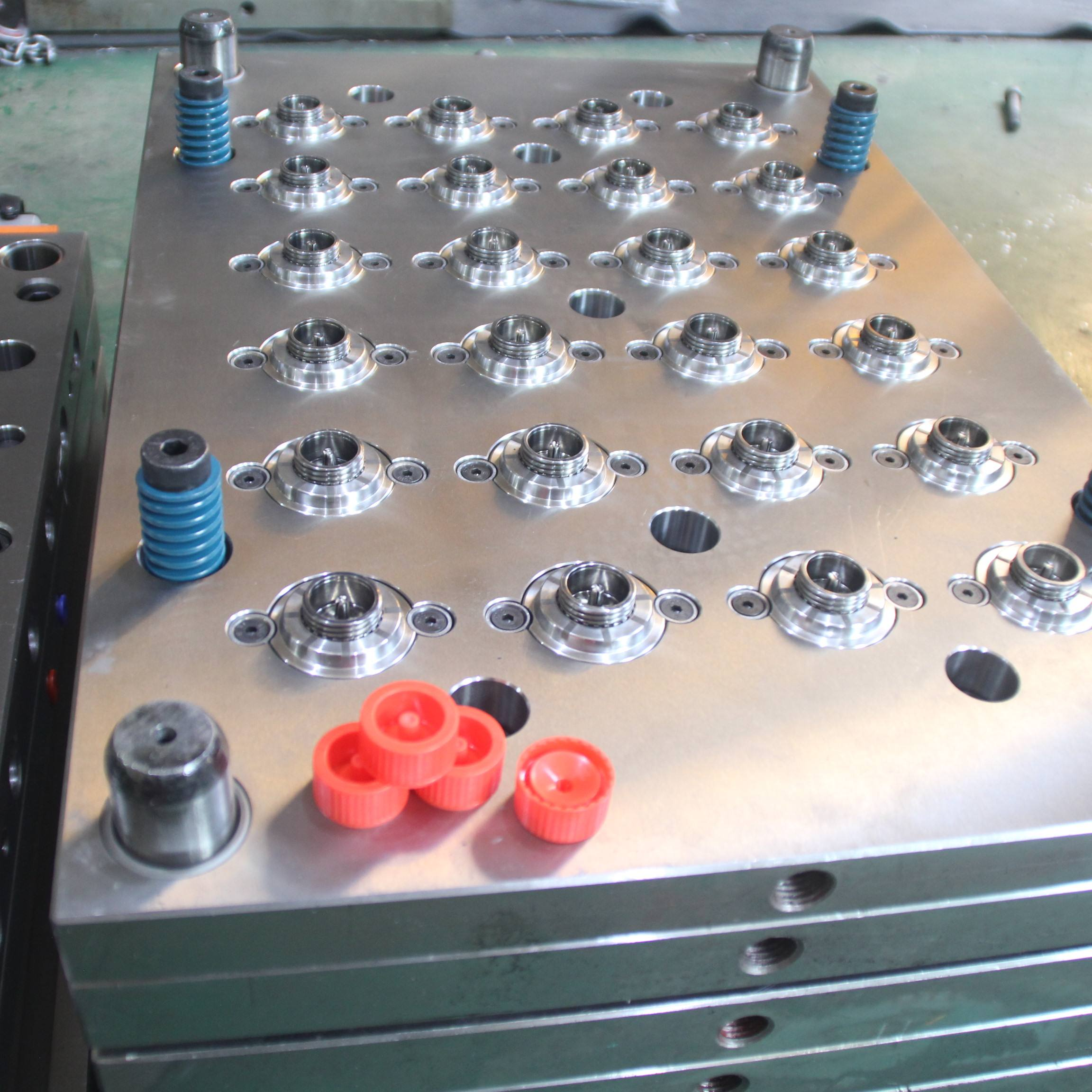

1. Scalability Architecture: From 2 to 48 Cavities
Choosing the right cavitation is not just a matter of matching production volumes; it dictates the entire mechanical and thermal architecture of the mould. As cavitation increases, engineering complexity scales exponentially.
- Low Cavitation (2, 4, 8 Cavities): Typically utilized for specialized, large-diameter caps (e.g., 5-gallon water caps, wide-mouth jar lids) or low-volume niche products. The focus here is on mechanical robustness and flexible cycling.
- Medium Cavitation (12, 16, 24 Cavities): The sweet spot for regional beverage bottling and personal care packaging. These configurations require optimized, balanced feeding systems and standardized cooling networks.
- High Cavitation (32, 48 Cavities): Engineered for high-speed, mass-production environments (e.g., standard 28mm/30mm CSD or water bottle caps). These moulds require advanced hot runner integration, complex split-loop cooling, and high-speed ejection mechanisms to maintain sub-second repeatability.
2. Balanced Hot Runner System: The Heart of Uniformity
In high-cavitation moulds, the slightest variance in melt temperature or pressure between cavities will lead to dimensional instability, flashing, or short shots. At Shuanghao Mould, we eliminate this through rheologically balanced hot runner designs.
Naturally Balanced Manifolds
We utilize geometrically and naturally balanced flow channels, ensuring that the plastic melt travels the exact same distance and experiences the identical shear history from the machine nozzle to every single gate.
Valve Gating vs. Point Gating
While precise point-gating is suitable for lower cavitation, high-speed 24- to 48-cavity moulds often leverage valve gate hot runner systems. Valve gating offers a clean, vestige-free cap surface, reduces cycle times, and minimizes gate wear, which is vital for automated downstream lining and capping processes.
3. Advanced Cooling Design for Sub-Second Cycles
Cooling accounts for up to 60-70% of the total injection molding cycle time. To maximize throughput, a multi-cavity cap mould must achieve rapid, uniform thermal dissipation.
Conformal Cooling & Core Inserts
Standard cooling channels often fail to reach the deep recesses of a bottle cap's internal threads. Shuanghao Mould utilizes independent, high-velocity bubbler or fountain cooling loops inside every single core insert. By maximizing the surface area of the cooling media, we maintain uniform steel temperatures across all 48 cavities, eliminating part warpage and significantly dropping cycle times.
4. Ejection and Thread Demolding Mechanisms
The geometry of a bottle cap—specifically its internal threads and tamper-evident bands—presents a unique demolding challenge, especially when multiplied across 32 or 48 cavities.
- Stripper Plate Ejection: Ideal for flip-top caps or simple snap-on caps. The force is distributed evenly across the cap perimeter to prevent deformation during high-speed ejection.
- Unscrewing Moulds (Rotary Ejection): For continuous, precise internal threads (e.g., cosmetic or spirits caps). This relies on integrated hydraulic motors or rack-and-pinion systems that flawlessly synchronize the rotation and retraction of all cores simultaneously.
- Collapsible Cores: Used for complex internal undercuts where unscrewing isn't feasible, allowing the core segments to collapse inward for an instant, clean release.
5. Material Selection and Structural Rigidity
Clamping forces scale up rapidly with higher cavitation. A 48-cavity mould enduring hundreds of tons of pressure over millions of cycles demands top-tier metallurgy to prevent micro-deflections.
- Mould Base: High-grade stainless steel (e.g., 1.2083 or 4Cr13) with optimal corrosion resistance to withstand condensation from cold water cooling.
- Cores & Cavities: We utilize premium, through-hardened steels such as S136 or H13, heat-treated to HRC 48-52. This guarantees exceptional wear resistance against abrasive resins and ensures a mould life exceeding 3 million cycles.
Why Partner with Shuanghao Mould?
As a dedicated plastic bottle cap mould manufacturing factory, Shuanghao Mould bridges the gap between complex engineering and cost-effective production. Our engineering team leverages cutting-edge CAE moldflow analysis to simulate injection pressure, temperature distribution, and venting before a single piece of steel is cut.
Whether you are starting with a flexible 2-cavity pilot tool or upgrading to an ultra-efficient 48-cavity mass-production system, our customized solutions guarantee optimized cycle times, zero-defect consistency, and an accelerated return on investment.
Looking to optimize your cap production? Contact the engineering specialists at Shuanghao Mould today for a tailored, high-performance multi-cavity solution.
