The Importance of Draft Angle in Cap Mold Design
In injection molding, a draft angle is a slight taper applied to the vertical walls of a molded part. While it might seem like a minor detail, it is actually a fundamental design element that directly affects production efficiency, part quality, and mold longevity .

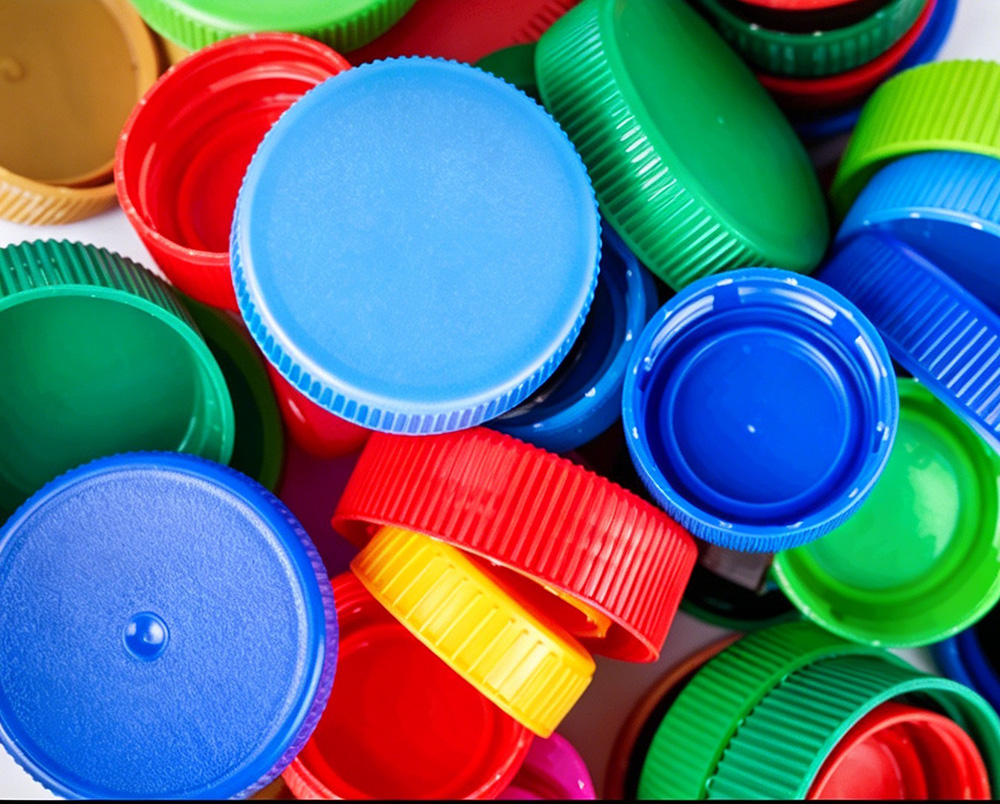

For bottle cap molds, the draft angle is especially critical. Without sufficient taper, caps can become stuck in the mold, leading to surface damage, deformation during ejection, and increased wear on the tool . This article explains why draft angles are essential and how to optimize them in cap mold design.
What Is a Draft Angle?
A draft angle is the taper added to the faces of a part that are parallel to the mold's opening direction . Instead of forming perfectly straight vertical walls, the mold cavity is designed with a slight slope. This allows the cooled plastic part to release from the mold cleanly and without excessive force .
The draft angle is measured in degrees from a line perpendicular to the mold parting line. For simple bottle cap designs, a draft angle of 1 to 3 degrees is often sufficient . However, the ideal angle depends on several factors, which are discussed below.
Why Draft Angles Are Critical for Caps
1. Reducing Ejection Force and Preventing Damage
As plastic cools and shrinks, it grips the mold core tightly . A proper draft angle reduces the contact area and friction between the cap and the mold surface . This lowers the force required to eject the part. Without enough draft, caps can stick in the mold, leading to deformation, stress whitening, or even cracking .
A related factor is that smooth mold surfaces require smaller draft angles, while rough or textured surfaces demand larger angles to overcome increased friction .
2. Protecting Surface Finish
Inadequate draft causes the plastic to drag along the mold surface during ejection. This creates scuffs, drag marks, and other cosmetic defects that ruin the cap's appearance . If the cap has a textured finish, the texture creates a mechanical interlock with the mold, making the part even more difficult to release .
Therefore, textured caps often require draft angles larger than those for smooth caps .
3. Extending Mold Life
Higher ejection forces accelerate wear on the mold components. A good draft angle reduces friction and rubbing, protecting the tool from galling and abrasion, and extending its service life .
4. Ensuring Dimensional Accuracy
If a cap is forced out of the mold, it may distort, resulting in out-of-spec dimensions. A proper draft ensures a clean release, maintaining the cap's intended shape and ensuring critical features like threads and sealing surfaces are accurate .
What is the Typical Draft Angle for Caps?
The required draft angle for a bottle cap depends on several factors :
Material: Materials with higher shrinkage rates may need larger draft angles to compensate for the grip they have on the core.
Surface Finish: A smooth, polished surface allows for a smaller draft angle. Conversely, a textured cap requires a larger draft to avoid drag marks .
Part Geometry: A deep cap or one with complex undercuts will require a more generous draft angle .
General Guidelines
Can You Have Zero Draft?
Zero draft can be used in very specific scenarios:
However, the risks of using zero draft are substantial. Parts can stick, requiring high ejection force which can cause damage, stress whitening, tool wear, and increased cycle times . In most cases, it is far better to design with a draft angle from the start.
Conclusion
In cap mold design, the draft angle is a small detail with a huge impact. It is essential for a smooth ejection process, protecting the part's surface finish, extending mold life, and ensuring dimensional accuracy .
By carefully considering the material, surface texture, and part geometry, you can determine the optimal draft angle. This proactive approach prevents costly production problems and ensures that your caps are made to a high standard of quality. Effective draft planning from the beginning of the design process reduces the need for tooling rework and promotes efficient production cycles
