Shuanghao's Approach to Family Molds for Multiple Cap Designs

For many cap manufacturers, variety is essential. A single customer may require different cap colors, different opening torques, different tamper-evident features, or different branding elements. Historically, each design variation required its own mold, a significant capital investment.

The family mold offers an alternative. A single mold base contains cavities for multiple cap designs, allowing different designs to be produced simultaneously or selectively. This approach reduces capital costs, saves floor space, and provides production flexibility.

But family molds present unique engineering challenges. Different designs may have different fill characteristics, different shrinkage rates, and different cooling requirements. Balancing these differences while maintaining quality across all designs requires expertise.

At Shuanghao, we have developed specialized techniques for family molds that produce multiple cap designs efficiently and reliably. This article reveals our approach.

What Is a Family Mold?

A family mold is a single mold base that contains cavities for two or more different part designs.

How Family Molds Work

Different cavity designs are arranged within the same mold base. Each cycle produces multiple parts, potentially of different designs. The runner system distributes melt to all cavities. Ejection systems remove all parts simultaneously.

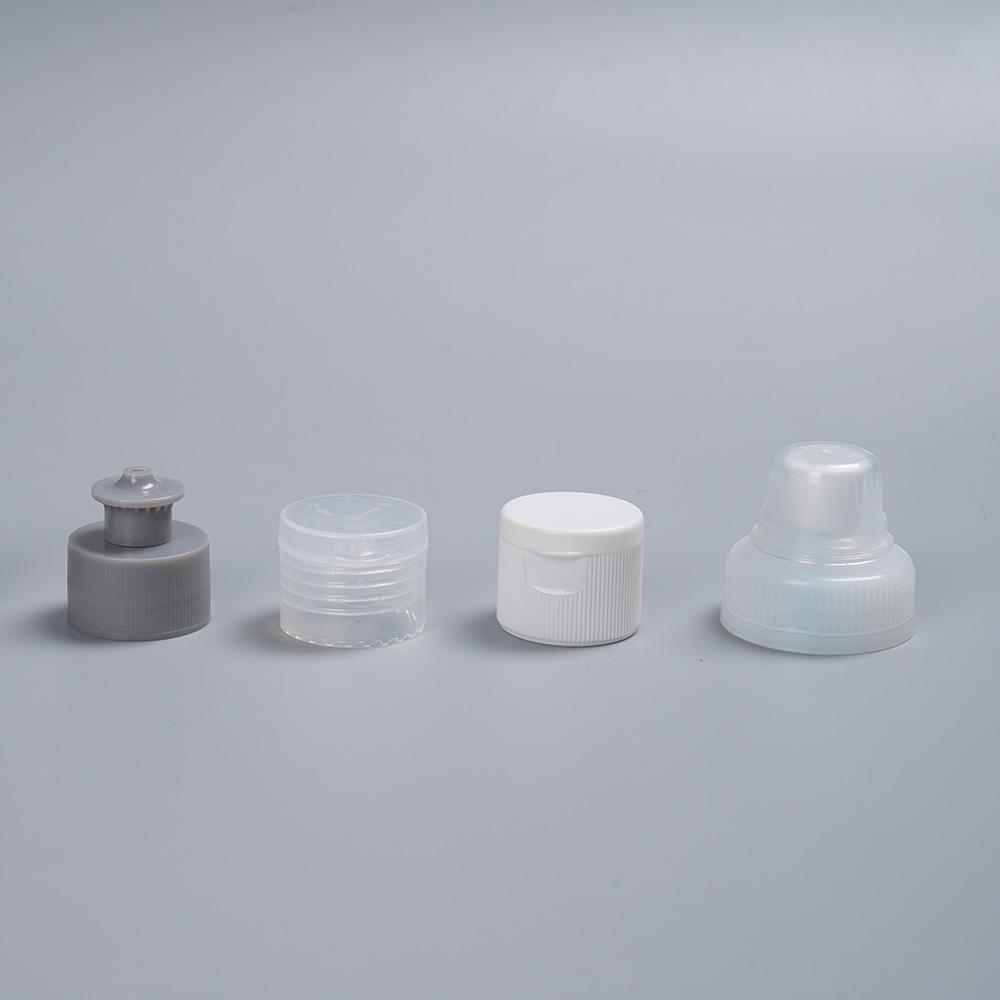

Applications for Cap Family Molds

Family molds serve several common scenarios. Different cap colors may be produced in the same mold with different cavity inserts. Different cap heights with the same diameter can share a mold base with interchangeable cavity components. Different closure types such as screw cap and snap cap can be combined in a single mold. Different branding or different customer designs can be produced together.

The Family Mold Challenge

Family molds are more complex than single-design molds.

Flow Balancing

Different part designs have different flow characteristics. A smaller cap fills faster than a larger cap. A cap with thicker walls requires less injection pressure than a thin-wall design. Imbalanced flow causes over-packing of some cavities and under-filling of others.

Shrinkage Differences

Different designs may require different materials or have different wall thickness distributions, leading to different shrinkage rates. Differential shrinkage creates dimensional variation and may cause part distortion.

Cooling Differences

Different designs have different cooling requirements. A thick cap requires more cooling time than a thin cap. The mold must provide adequate cooling for the most demanding design while not overcooling others.

Ejection Differences

Different designs may require different ejection strategies. A deep cap requires more ejector stroke than a shallow cap. The mold must accommodate the most demanding ejection requirement.

Shuanghao's Family Mold Strategy

Shuanghao's approach to family molds is systematic and data-driven.

Step 1: Design Analysis

The process begins with analysis of each cap design. Shuanghao engineers evaluate fill characteristics using mold flow analysis. Material shrinkage is calculated for each design. Cooling requirements are modeled. Ejection force is estimated.

This analysis identifies potential conflicts before mold manufacturing begins.

Step 2: Cavity Layout

Cavities are arranged to optimize flow balance and machine utilization. Symmetric layouts place identical or similar designs opposite each other. Larger or more demanding designs are positioned centrally for better flow. Smaller or less demanding designs are positioned peripherally.

Shuanghao's layout strategy minimizes flow length differences between cavities.

Step 3: Runner Balancing

The runner system is the key to family mold success. Shuanghao uses several techniques to balance flow.

Runner diameter adjustments increase diameter to reduce resistance for hard-to-fill cavities. Runner length adjustments equalize flow path lengths across all cavities. Flow restrictors in the runner system fine-tune flow to individual cavities.

For hot runner family molds, independent nozzle temperature control allows cavity-specific adjustments.

Step 4: Cavity-Specific Features

Each cavity can have design features that optimize its performance. Different gate sizes for different designs accommodate varying flow requirements. Different venting depths for different designs reflect material flow differences. Different cooling circuits for different designs provide independent temperature control.

Shuanghao's modular cavity design enables these cavity-specific features while maintaining overall mold integrity.

Family Mold Configurations

Shuanghao offers several family mold configurations depending on customer requirements.

Full Family Mold

All cavities produce different designs simultaneously. Each cycle produces one of each design. This configuration is suitable when demand for each design is balanced. Production planning is simple: run the mold to build inventory of all designs.

Selective Family Mold

Some cavities can be deactivated when not needed. Interchangeable cavity blanks replace active cavities. This configuration is suitable when demand varies by design. Production can be adjusted to match demand without mold changes.

Mixed Multi-Cavity Family Mold

Multiple cavities of popular designs with single cavities of less popular designs. This configuration optimizes output for high-volume designs while providing flexibility. Cavity counts are proportional to expected demand.

Interchangeable Insert Family Mold

The same mold base accepts different cavity insert sets. This configuration provides maximum flexibility. Different design families can be produced from the same mold base. Changeover between families requires insert replacement but not a complete mold.

Process Optimization for Family Molds

Family molds require careful process optimization.

Injection Speed

Injection speed must be optimized for the most challenging cavity. Faster speeds help fill difficult thin-wall sections. Slower speeds prevent flash in easy-to-fill cavities.

Shuanghao uses profiled injection speeds to balance these competing requirements.

Packing Pressure

Packing pressure must satisfy the most demanding cavity without over-packing others. Individual cavity pressure sensors enable cavity-specific packing control. Valve gates allow individual cavity packing time adjustment.

Shuanghao recommends cavity pressure monitoring for family molds.

Cooling Time

Cooling time must be adequate for the slowest-cooling cavity. Shuanghao's cooling analysis identifies the critical cavity. Zone-specific cooling can help balance cooling requirements.

Ejection

Ejection must be coordinated across all designs. Shuanghao designs ejection systems with sufficient stroke for the deepest cap. Ejector pin placement is optimized for each cavity design.

Quality Assurance for Family Molds

Quality verification for family molds is more complex than for single-design molds.

Cavity-Specific Sampling

Shuanghao recommends sampling caps from each cavity individually. Each design is inspected to its own specification. Cavity-to-cavity variation is tracked separately for each design type.

Statistical Process Control

Separate control charts are maintained for each cavity or design type. Trends that affect one design may not affect others. SPC systems must accommodate multiple specification limits.

Cavity Identification

Caps must be traceable to their source cavity. Shuanghao recommends cavity numbering or marking on each cap. Vision systems can sort caps by design type after molding.

Cost Benefits of Family Molds

Family molds offer significant economic advantages.

Lower Capital Investment

A single family mold costs less than multiple individual molds. The mold base is shared across designs. Common components such as hot runners and ejector systems are not duplicated. Typical savings range from 30 to 50 percent compared to individual molds.

Reduced Floor Space

One mold in one machine produces multiple designs. Multiple molds would require multiple machines or frequent changeovers. Floor space, utilities, and auxiliary equipment are conserved.

Production Flexibility

Family molds enable just-in-time production of multiple designs. Inventory of less popular designs can be reduced. Response time to demand changes is shortened.

Lower Maintenance Cost

One mold requires maintenance instead of several. Common spare parts serve multiple cavities. Maintenance labor is reduced.

Real-World Results: Shuanghao Family Mold Customers

Customer Case: Beverage Company with Multiple Brands

A beverage company had four different cap designs for different brand lines. Each design used the same 28-millimeter neck finish but different top styling and branding.

Shuanghao designed a 48-cavity family mold with 12 cavities of each design. The hot runner system was balanced for equal fill across all designs.

Results included capital cost reduction of 45 percent compared to four individual 12-cavity molds. The single mold occupied one machine instead of four. Changeover between brand productions required only a material change, not a mold change.

Customer Case: Contract Packager with Multiple Customers

A contract packager needed to produce caps for multiple customers with different designs. Volumes varied significantly by customer.

Shuanghao designed a family mold with interchangeable cavity inserts. A 64-cavity mold base accepted different insert sets. Customer-specific designs were produced by changing inserts rather than purchasing dedicated molds.

Results included reduced capital investment for low-volume customers. Faster changeover between customer runs, from 4 hours to 45 minutes. Ability to respond quickly to new customer opportunities.

Limitations of Family Molds

Family molds are not suitable for all applications.

Part Size Differences

Very large differences in part size create significant balancing challenges. Shuanghao recommends cavity volume variation of less than 2:1 for family molds.

Material Differences

Family molds require the same material for all cavities. Different materials have different shrinkages and processing requirements. Shuanghao recommends single-material family molds.

Quality Critical Applications

Applications with extremely tight tolerances may require individual molds. Family molds introduce additional variation sources. Shuanghao advises customers based on specific requirements.

The Shuanghao Family Mold Advantage

Shuanghao's family mold expertise delivers systematic design analysis using mold flow and cooling simulation before manufacturing. Optimized cavity layout balances flow and utilizes machine capacity. Advanced runner balancing uses diameter adjustment, length equalization, and flow restrictors. Cavity-specific features include independent gate sizing, venting, and cooling. Process optimization includes profiled injection speeds and cavity pressure monitoring. Comprehensive quality assurance includes cavity-specific sampling and SPC.

Conclusion: Flexibility Without Compromise

Family molds offer an efficient solution for manufacturers requiring multiple cap designs. By sharing a single mold base across designs, capital costs are reduced, floor space is conserved, and production flexibility is increased.

Shuanghao's family mold engineering ensures that flexibility does not compromise quality. Through careful design analysis, optimized cavity layout, precision runner balancing, and robust process control, we produce family molds that deliver consistent quality across all designs.

Whether you need to produce multiple brand variants, serve multiple customers, or simply maintain production flexibility, Shuanghao has the family mold expertise to meet your needs.
