New bottle cap mould high quality latest engine oil cap mold

Cap mould Specification :

1.We can design the mould according to your sample or 2D/3D drawing.

2.Mould steel: P20, #2316 steel, S136 and so on, or according to customer's request.

3.Delivery time: 30-60days.

4.Certifiable life: ≥1,000,000 shots

5.4cavity, 6cavity, 8cavity, 12cavity, 16cavity, 20cavity, 24cavity, 32cavity, 48cavity etc.

6.Germanic " Hotset" Brand heat fittings and quality thermocouple.

7.Insert materials: cavity and core with imported 2316 stainless steel or S136, P20, and so on, or according to customer's request.

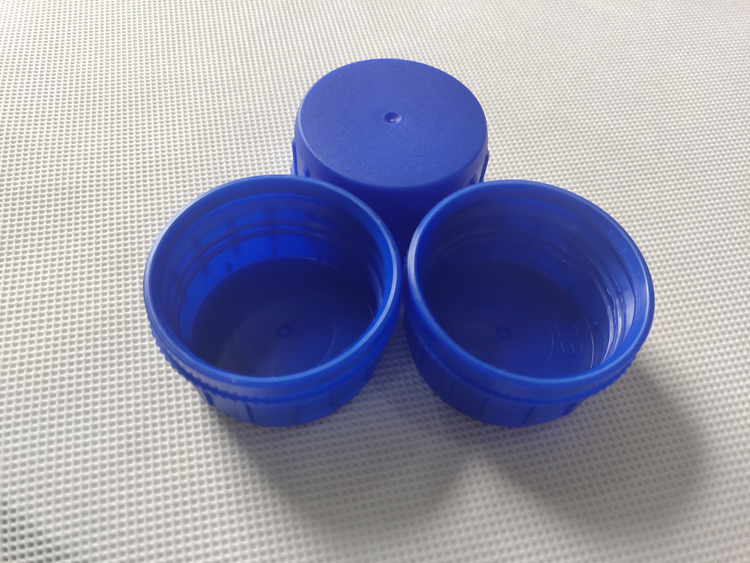

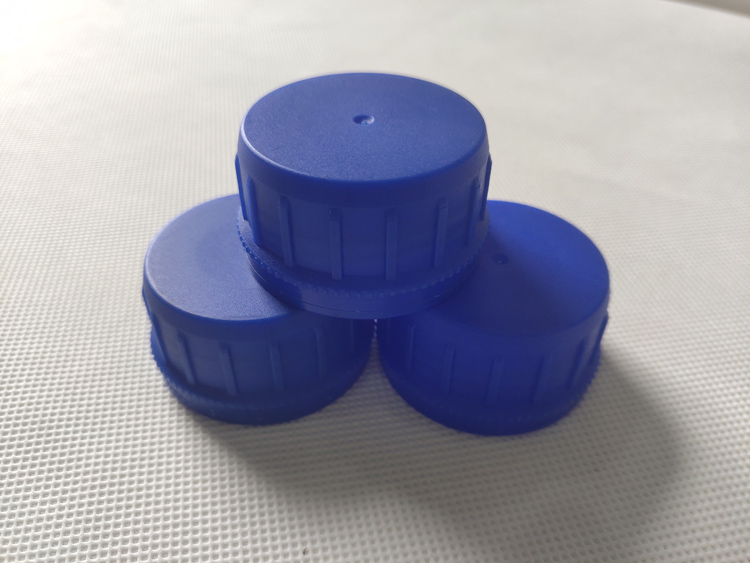

Feature detail : pilfer proof

1) Diameter: 38mm neck

2) Weight: 3.0g.

3) With anti-theft ring/ tamper evident ring.

4) Color: any color by customer

5) Inside liner material: TPR.
6) screw cap

Special satisfied service

1.we will send the weekly mould process report and tooling schedule each 5-10 work days.
2. we will send the first testing sample for buyer's inspection and work out improvement requirements.

Tips Detail explain:
1)2316 steel from German
1, Hardness: HRC45-48
2, HBS<=235
3.Surface:black or polish
4.Technique:hot rolled or Forged


2316 plastic mould steel characters:
1 medical carbon high chrome martensite shape stainless steel
2 high purity good performance of high mirror polish,anti-acid, anti-rust after heat treatment
3 good corrosion resistance
4 resistance for erosive attack,good stability


2) S136 steel from Sweden win hundred, Japanese Datong
1. Hardness: HRC45-48
2. Annealing: 215HB
S136 plastic mould steel characters:
1. Belong to medial carbon high chrome Martensite shape stainless steel
2. High purity , good performance of high mirror polishing, anti-acid, anti-rust after heat- treatment
3. Good corrosion resistance
4. Resistance for erosive attack
5. Low deformation rate
6. Good stability
